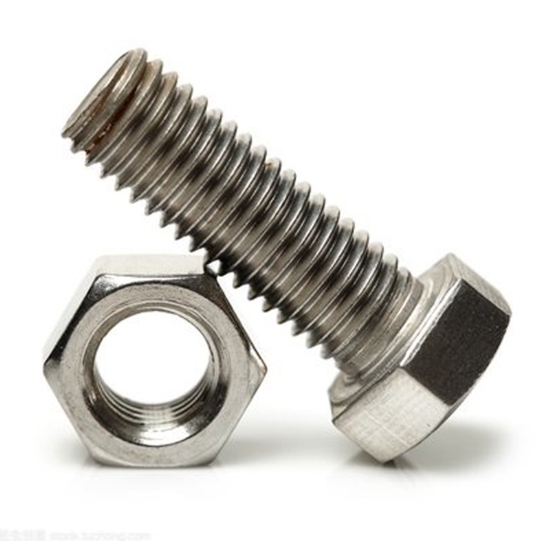

DIN933 hexagon bolts

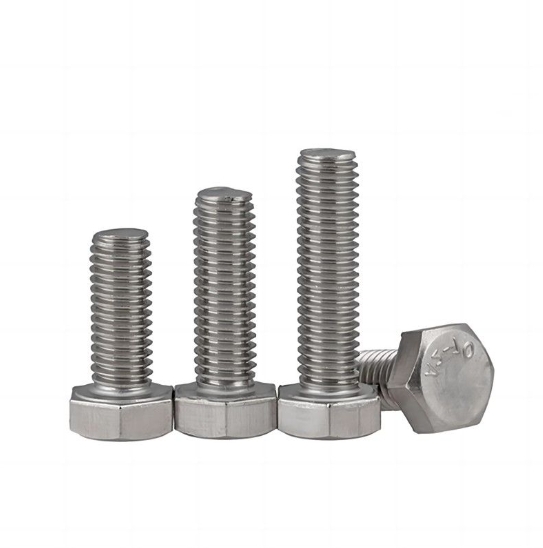

DIN933 hexagon bolts

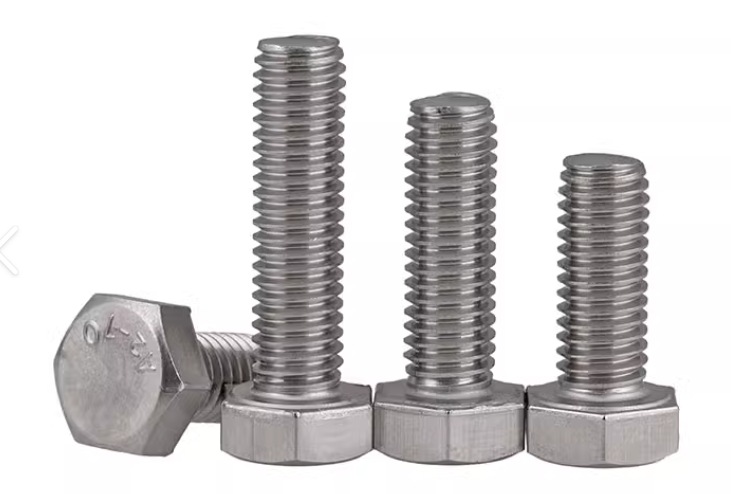

DIN933 hexagon bolts

DIN933 hexagon bolts

DIN933 hexagon bolts

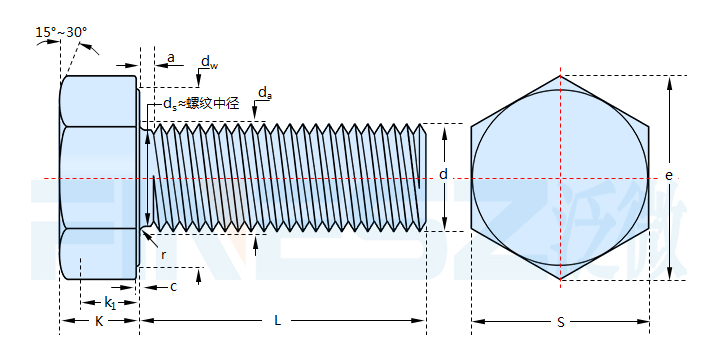

Thread size d			M4	M5	M6	(M7)	M8	M10	M12	(M14)	M16	(M18)	M20
P	pitch of screw		0.7	0.8	1	1	1.25	1.5	1.75	2	2	2.5	2.5
a	MAX		2.1	2.4	3	3	3.75	4.5	5.25	6	6	7.5	7.5
c	MIN		0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.2	0.2	0.2
c	MAX		0.4	0.5	0.5	0.5	0.6	0.6	0.6	0.6	0.8	0.8	0.8
da	MAX		4.7	5.7	6.8	7.8	9.2	11.2	13.7	15.7	17.7	20.2	22.4
dw	Gr.A	MIN	5.9	6.9	8.9	9.6	11.6	15.6	17.4	20.5	22.5	25.3	28.2
dw	Gr.B	MIN	5.7	6.7	8.7	9.4	11.4	15.4	17.2	20.1	22	24.8	27.7
e	Gr.A	MIN	7.66	8.79	11.05	12.12	14.38	18.9	21.1	24.49	26.75	30.14	33.53
e	Gr.B	MIN	7.5	8.63	10.89	11.94	14.2	18.72	20.88	23.91	26.17	29.56	32.95
k	公称		2.8	3.5	4	4.8	5.3	6.4	7.5	8.8	10	11.5	12.5
	Gr.A	MIN	2.68	3.35	3.85	4.65	5.15	6.22	7.32	8.62	9.82	11.28	12.28
	Gr.A	MAX	2.92	3.65	4.15	4.95	5.45	6.56	7.68	8.98	10.18	11.72	12.72
	Gr.B	MIN	2.6	3.26	3.76	4.56	5.06	6.11	7.21	8.51	9.71	11.15	12.15
	Gr.B	MAX	3	3.74	4.24	5.04	5.54	6.69	7.79	9.09	10.29	11.85	12.85
k1	MIN		1.9	2.28	2.63	3.19	3.54	4.28	5.05	5.96	6.8	7.8	8.5
r	MIN		0.2	0.2	0.25	0.25	0.4	0.4	0.6	0.6	0.6	0.6	0.8
s	MAX		7	8	10	11	13	17	19	22	24	27	30
	Gr.A	MIN	6.78	7.78	9.78	10.73	12.73	16.73	18.67	21.67	23.67	26.67	29.67
	Gr.B	MIN	6.64	7.64	9.64	10.57	12.57	16.57	18.48	21.16	23.16	26.15	29.16

(M22)	M24	(M27)	M30	(M33)	M36	(M39)	M42	(M45)	M48	(M52)
2.5	3	3	3.5	3.5	4	4	4.5	4.5	5	5
7.5	9	9	10.5	10.5	12	12	13.5	13.5	15	15
0.2	0.2	0.2	0.2	0.2	0.2	0.3	0.3	0.3	0.3	0.3
0.8	0.8	0.8	0.8	0.8	0.8	1	1	1	1	1
24.4	26.4	30.4	33.4	36.4	39.4	42.4	45.6	48.6	52.6	56.6
30	33.6	-	-	-	-	-	-	-	-	-
29.5	33.2	38	42.7	46.5	51.1	55.9	59.9	64.7	69.4	74.2
35.72	39.98	-	-	-	-	-	-	-	-	-
35.03	39.55	45.2	50.85	55.37	60.79	66.44	71.3	76.95	82.6	88.25
14	15	17	18.7	21	22.5	25	26	28	30	33
13.78	14.78	-	-	-	-	-	-	-	-	-
14.22	15.22	-	-	-	-	-	-	-	-	-
13.65	14.65	16.65	18.28	20.58	22.08	24.58	25.58	27.58	29.58	32.5
14.35	15.35	17.35	19.12	21.42	22.92	25.42	26.42	28.42	30.42	33.5
9.6	10.3	11.7	12.8	14.4	15.5	17.2	17.9	19.3	20.9	22.8
0.8	0.8	1	1	1	1	1	1.2	1.2	1.6	1.6
32	36	41	46	50	55	60	65	70	75	80
31.61	35.38	-	-	-	-	-	-	-	-	-
31	35	40	45	49	53.8	58.8	63.1	68.1	73.1	78.1

DIN933 hexagon bolts

Material		Steel	Stainless steel	Non-ferrous metals
Thread	Tolerance	6g
Mechanical property	Grade	8.8，5.6，10.9	≤ M20：A2-70，A4-70	For example：CU2，CU3
			＞M20 ≤ M39：A2-50，A4-50
			≤ M39：C3，C4
Tolerance	Product Class	A：≤ M24, and L ≤ 10dor150mm
		B：＞M24，and L＞10dor150mm
surface treatment	-	untreated	bright	bright
		blackened from 8.8 （thermally or chemically)
	-	electroplated DIN 267 part 9①
		hot dip galvanizing DIN 267 part 10
Surface roughness		DIN 267 part 2
Surface Defects		DIN 267 part 19
Acceptance and packaging		DIN 267 part 5
Remarks		① Only for screws without surface protection. 6 g makes it possible for normal coating thicknesses to be applied in accordance with DIN 267 part 9, the reference line not being exceeded. Depending on the coating thickness required, a larger fundamental deviation shall be selected than that for the g position. This might, however, impair the resistance to stripping of the bolt / nut assembly.
