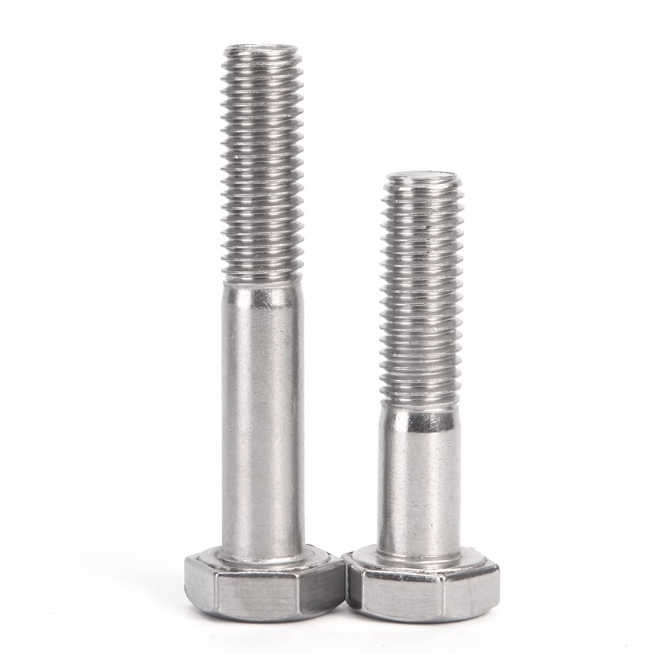

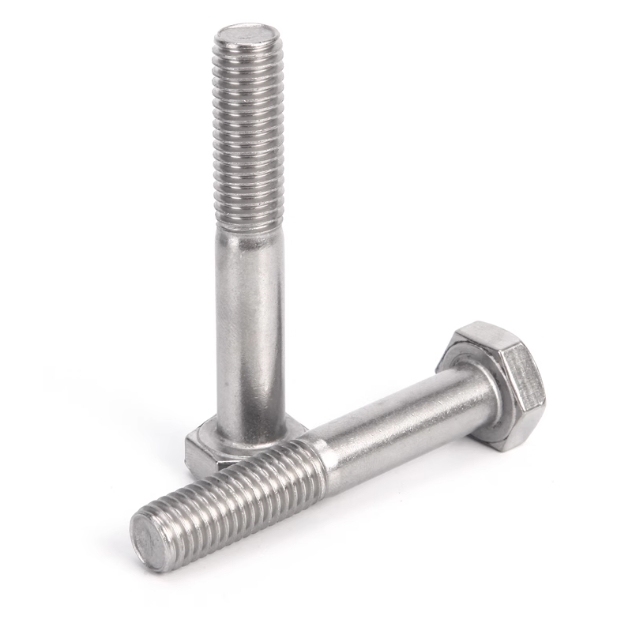

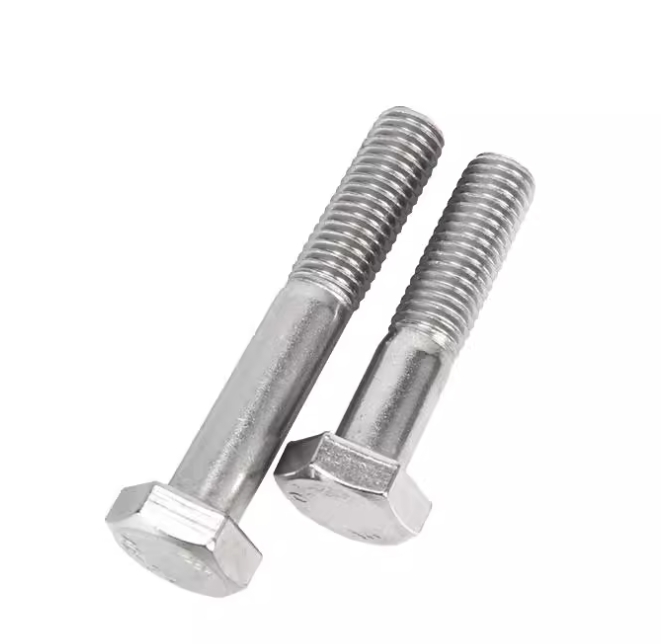

DIN931 Half-Threaded Hexagon Socket Bolts
731819000

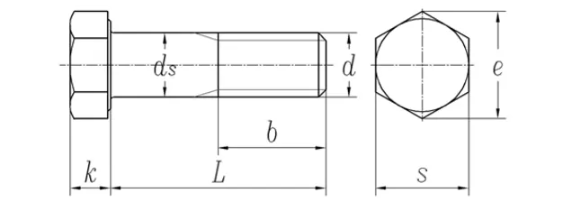

| Nominal Diameter | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | (M7) | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | ||
| P | Thread Pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | |
| b | L≤125 | 9 | 10 | 11 | 12 | 13 | 14 | 16 | 18 | 20 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 | 60 | 66 | 72 | 78 | 84 | |
| 125 | - | - | - | - | - | - | 22 | 24 | 26 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | 66 | 72 | 78 | 84 | 90 | ||
| L>200 | - | - | - | - | - | - | - | - | - | - | 45 | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 79 | 85 | 91 | 97 | 103 | ||
| ds | max=nominal size | 1.6 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | |
| Grade A | min | 1.46 | 1.86 | 2.36 | 2.86 | 3.32 | 3.82 | 4.82 | 5.82 | 6.78 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | 21.67 | 23.67 | - | - | - | - | - | |
| Grade B | min | - | - | - | - | - | - | - | - | - | - | - | - | - | 15.57 | 17.57 | 19.48 | 21.48 | 23.48 | 26.48 | 29.48 | 32.38 | 35.38 | 38.38 | |
| k | Grade A | min | 0.98 | 1.28 | 1.58 | 1.88 | 2.28 | 2.68 | 3.35 | 3.85 | 4.65 | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.28 | 12.28 | 13.78 | 14.78 | - | - | - | - | - |
| max | 1.22 | 1.52 | 1.82 | 2.12 | 2.52 | 2.92 | 3.65 | 4.15 | 4.95 | 5.45 | 6.58 | 7.68 | 8.98 | 10.18 | 11.72 | 12.72 | 14.22 | 15.22 | - | - | - | - | - | ||
| Grade B | min | - | - | - | - | - | - | - | - | - | - | - | - | - | 9.71 | 11.15 | 12.15 | 13.65 | 14.65 | 16.65 | 18.28 | 20.58 | 22.08 | 24.58 | |
| max | - | - | - | - | - | - | - | - | - | - | - | - | - | 10.29 | 11.85 | 12.85 | 14.35 | 15.35 | 17.35 | 19.12 | 21.42 | 22.92 | 25.42 | ||
| s | max=nominal size | 3.2 | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | |
| Grade A | min | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.67 | 29.67 | 31.61 | 35.38 | - | - | - | - | - | |
| Grade B | min | - | - | - | - | - | - | - | - | - | - | - | - | - | 23.16 | 26.16 | 29.16 | 31 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | |
1.Q:Please send the catalog ?
A: If you need a catalog, please leave us your email and we will send you a catalog within 2 business hours.
2.Q:Can I get some sample?
A: Yes, we think that sample orders are a great way to start working together. All our samples are free of charge, but we can only send samples weighing less than 1 kilogram. You only need to pay for express delivery.
3.Q: Could you accept use my own LOGO or design on goods?
A: Yes, no problem .
4.Q: What is the delivery time?
A: For samples it takes 4 days . For orders it depends on your order quantity Our factory produces 200 tons of standard fasteners a month .
5.Q:What is your payment ?
A: Our payment is 30% T/T and 70 % balance before shipping we also can do L/C D/P about more details we can talk in email.
6.Q: Can I trust you?
A: Sure .we are the suppliers in "made-in-china" they have very strictly and carefully certification system to sure we are a real manufacturing company.
7.Q: May I visit your factory?
A:sure .we welcome You to visit our factory anytime. before come connect us and let us know you schedule is better that we can pick up you from the airport or train station .
